It's so easy - because it's BUNGARD.

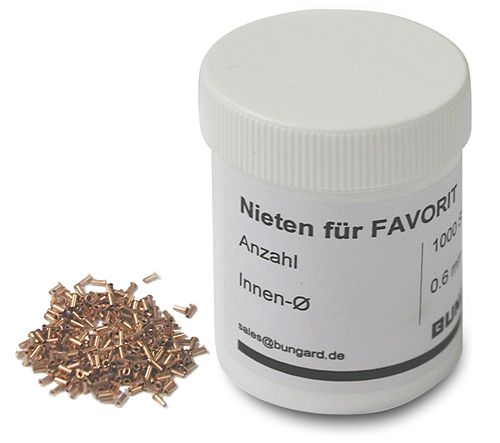

With our high quality rivets and our famous FAVORIT you will ever get the best results.
- Standard:
Tubular Rivets according to DIN 7340,
Form A
- Material:
Copper, blank
New !
For the Bungard CCD we offer special brass tubular rivets with outer diameter 3.0 mm. With a special tool for Favorit you can use these rivets to arrange and fix multilayer boards before pressing.
Similar, but of shorter length are the fixing pins for Hellas/Filmstar to fix the layout to the pcb durcing exposure.
| Measures: |
| Inner diameter |
Outer diameter
+/- 0.03 mm |
Length
+/- 0.10 mm |
Head diameter
+/- 0.15 mm |
Wall thickness
+/- 10% |
| 0,4 mm |
0,6 mm |
2,2 mm |
0,9 mm |
0,1 mm |
| 0,6 mm |
0,8 mm |
2,2 mm |
1,3 mm |
0,1 mm |
| 0,8 mm |
1,0 mm |
2,2 mm |
1,6 mm |
0,1 mm |
| 1,0 mm |
1,4 mm |
2,5 mm |
2,2 mm |
0,2 mm |
| 1,2 mm |
1,6 mm |
2,6 mm |
2,6 mm |
0,2 mm |
| 1,5 mm |
1,9 mm |
2,7 mm |
3,1 mm |
0,2 mm |
| |
| Drill diameter: When drilling on CNC machines, the drill diameter should be 0.1 mm larger than the above outer diameter. |
